ULV (Cold) Fog Equipment |
| Mouse over to learn more about each machine. |
| |
|
|
| |

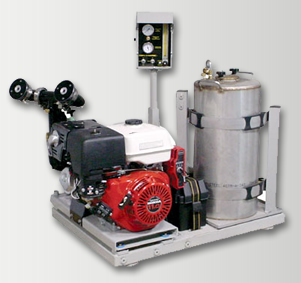

Typhoon IIP™ |
 |
| |
 |
| |
Powered by your choice of a 9 or 11HP heavy duty OHV engine, the Typhoon IIP™ offers the features and
quality components that have made DYNA-FOG equipment the industry standard for Professional Mosquito Control.
The full featured control panel with Stainless Steel Flow Meter can be mounted within operators reach to monitor formulation flow tank pressure and spray on/off. A night light makes viewing the control panel easy at any time. The large capacity stainless steel formulation tank provides safe and dependable containment of chemical. |
| |
| Model: |
2986 - 9 |
| Engine: |
Available with 9 HP or 11 HP @ 4,000 RPM, 4 cycle, gasoline powered, electric
start with charging system, low tone muffler system |
| Blower: |
Positive displacement rotary type, Max. Air output: 5.7m3/min. Max. Air
Pressure: .83 Bar Corrosion resistant Silencer Air-Filter |
| Systems: |
Steel Flow Meter with solution taps. Tank Pressure gauge, Spray ON/OFF,
temperature gauge, night light and control valve. Remote control box with 5 meter extension cable |
| Nozzle: |
Boom type, with "Double Twist" 360° |
| Tanks: |
38 L |
| Formulation: |
Corrosion resistant Stainless Steel |
| Gasoline: |
6 |
| Flush: |
3.8 L |
| Particle size: |
Meets the label requirements of all currently. Available formulations by producing 90% or more of droplets under 20 microns |
| Options: |
Flush system, emergency flow meter by-pass valve, Machine Cover with
Silkscreen, Sewer attachment, Tool Box |
| Machine Dimens Uncrated: |
L x W x H: 104.1 x 71.1 x 96.5 cm |
| Shipping Dimens (crated): |
122 x 102 x 99 cm |
| Weight: |
135 kg |
| Shipping Volume: |
1.23 cu m |
| Shipping Weight: |
188 kg |
|
|
|
