ULV (Cold) Fog Equipment |
| Mouse over to learn more about each machine. |
| |
|
|
| |

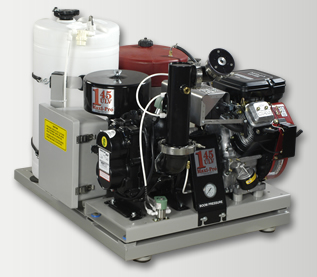

Max-Pro 145™ |
 |
| |
 |
| |
The Dyna-Fog Maxi-Pro 145™ is the single nozzle version of the well established high powered 18hp
Maxi-Pro 4T. Built from only the highest quality materials, this unit will give reliable usage with the very minimum of maintenance.
Combined with your choice of either the Gear or FMI Piston Pumping Systems, the single DYNA-FOG ® MULTIMISTT nozzles will produce 90% of spray droplets below 20 microns when used at the recommended flow rates and pressures. This high performance meets the requirements of all current chemical labels. |
| |
| Model: |
2748 |
| Engine: |
4-cycle, twin cylinder 18 HP OHV gasoline engine, fuel pump, alternator and
electric start |
| Blower: |
Rotary, positive displacement direct drive. Air output up to 11.2 m3/min |
| Pumping Systems: |
|
| Gear Pump: |
positive displacement, Stainless Steel |
| FMI Piston Pump: |
positive displacement, Stainless Steel
housing/Ceramic Piston Output: 0-600 ml/min |
| Nozzles: |
One MULTIMISTT nozzle adjustable 360 o horizontally and vertically |
| Tanks: |
Corrosion and UV resistant, high density polyethylene |
| Tank Capacities: |
Formulation: 57 L with lockable cap, liquid level graduation marks
Gasoline: 47 L with gauge; sufficient for 7.5 hours running
Flush: 3.8 L with tethered cap |
| Remote Control Features: |
For units equipped with Gear Pump or FMI
Synchro flow
Engine on/off / start
Engine Choke
Spray on/off, Flush on/off, Chemical flow rate
Digital Display of liquid flow rate (oz or ml / min)
Digital Display of Vehicle Speed (mph or km/hr) |
| Length: |
112 cm |
| Width: |
94 cm |
| Height: |
76 cm |
| Shipping data : |
L x W x H: 122 cm x 102 cm x 99 cm |
| Volume: |
1.21m3 |
| Weight: |
252 Kg |
|
|
|
