Thermal Fog Equipment |
| Mouse over to learn more about each machine. |
| |
|
|
| |

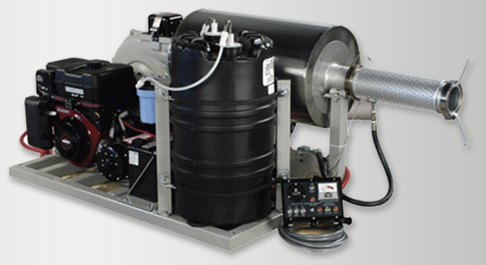

Model 1200™ |
 |
| |
 |
| |
Its tremendous capacity of 120 gallons per hour makes it capable of blanketing mammoth areas with dense heavy fog that destroys insects and pests in a fraction of the time required by other equipment.
And no other machine combines an extremely low noise level with such an enormous fog output. The 1200 runs quieter than a typical ULV aerosol generator The Dyna-Fog 1200™.
The ultimate fog applicator for large area insect control, it can cover 5 hectares (12.5 acres) in one minute.
The 1200™ can also be an effective way of applying fungicides to certain tree crops such as: rubber, oil palm and cocoa, when the weather conditions are suitable. |
| |
| Model: |
1200 |
| Insecticide Output: |
57- 454 L/hr |
| Formulation output: |
it can cover 5 hectares (12.5 acres) in one minute |
| Length (w/nozzle): |
199 cm |
| Length (w/o Nozzle): |
139 cm |
| Width: |
13.8 cm |
| Height: |
12.6 cm |
| Gasoline Engine: |
9 HP. Overhead Valve |
| Gasoline Tank: |
4.76 L |
| Heater Tank: |
56.8 L (5 hrs) |
| Formulation Tank: |
11.4 L |
| Fog Particle size: |
10 - 100 microns |
| Total Weight: |
Empty: 211.8 kg / Full: 281 kg |
| Shipping dimens (box): |
152 X 109 X 107 cm |
| Shipping volume: |
1.77 m3 |
| Shipping weight: |
265.36 kg |
|
|
|
